Dual Band VHF/UHF Handheld Radio with GPS, Bluetooth, APRS, App Programming & Optional ATAK Voice/Data Upgrade

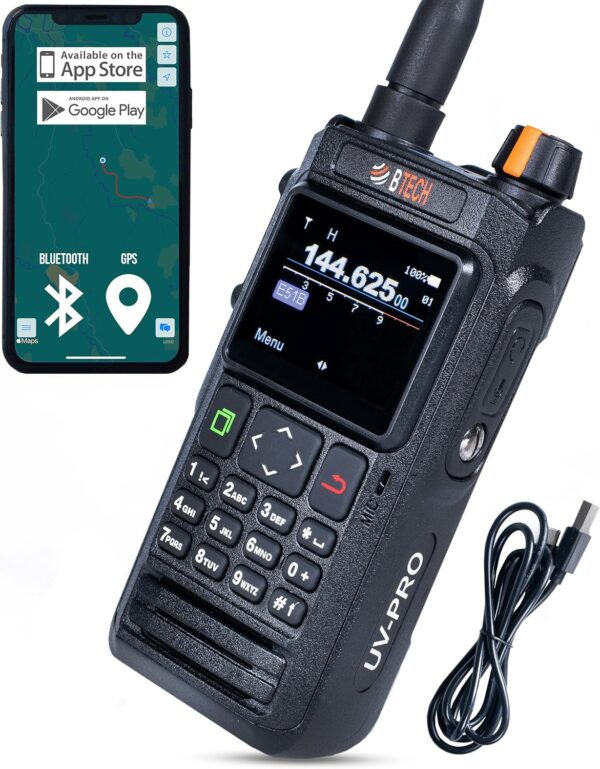

The BTECH UV-PRO is a rugged, app-connected dual band VHF/UHF handheld radio designed for licensed users who want a compact communications platform with modern field-ready features.
With GPS, Bluetooth, APRS, text messaging capability, app-based programming, aviation band receive, USB-C charging, IP67 dust and water protection, the UV-PRO is well suited to Australian amateur radio operators, preparedness users, field teams, 4WD groups, rural properties, events, and emergency communications planning.
When paired with compatible apps, accessories, and correct licensing, the UV-PRO can also support more advanced workflows including APRS tracking, radio-to-app location sharing, KISS TNC data workflows, and ATAK-style voice and data communications.

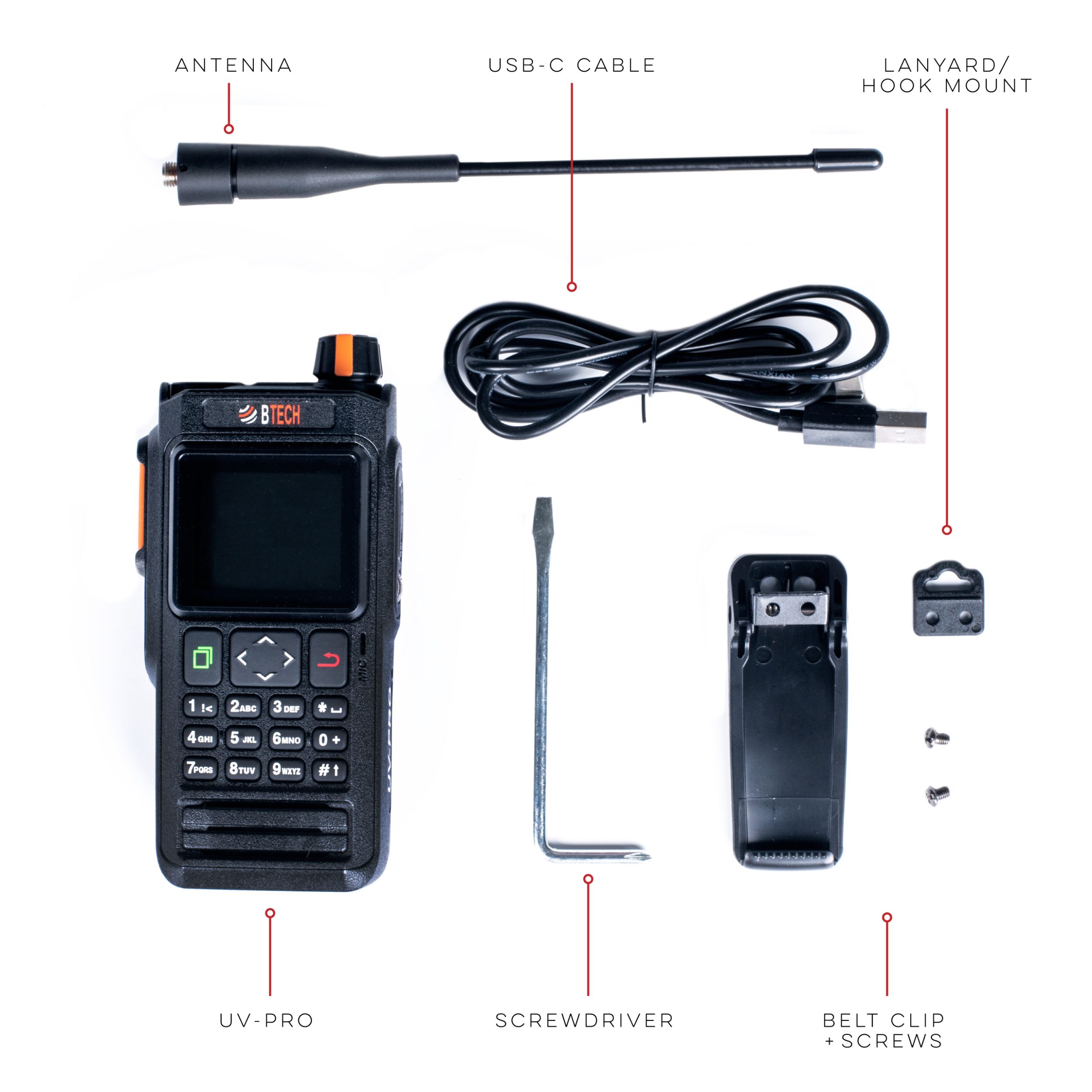

ZDA Bundle Includes
The Zero Disaster Australia UV-PRO Bundle can include:
- BTECH UV-PRO dual band handheld radio
- USB-C rechargeable battery
- Standard antenna
- Charging accessories
- Basic Australian programming support
- Simplex and repeater channel setup where suitable
- Bluetooth and app setup guidance
- ZDA post-sale support
Optional upgrades may include:
- Spare battery
- Upgraded antenna
- External speaker microphone
- Vehicle charging setup
- Programming package
- APRS
- ATAK integration support
Built for Australian Field Use
4WD, Touring & Outdoor Communications
The UV-PRO is a compact handheld option for licensed users who need portable VHF/UHF communications during touring, camping, club activities, field operations, and preparedness planning.
It can be carried in a pack, kept in a vehicle kit, used around camp, or paired with accessories for more flexible field use.
Preparedness & Emergency Communications
For customers building a layered communications plan, the UV-PRO provides more than basic voice radio. With GPS, APRS, Bluetooth, app syncing, and USB-C charging, it is a useful addition to a preparedness kit, go-bag, vehicle kit, or home emergency communications setup.
GPS, APRS & Location Sharing
Built-in GPS and APRS tools allow licensed operators to use position sharing, smart beaconing, APRS messaging workflows, and location syncing between the radio and compatible app.
This can assist with:
- Vehicle or operator tracking
- Field coordination
- Event support
- Checkpoint visibility
- Team location awareness
- APRS mapping workflows
- Preparedness communications planning

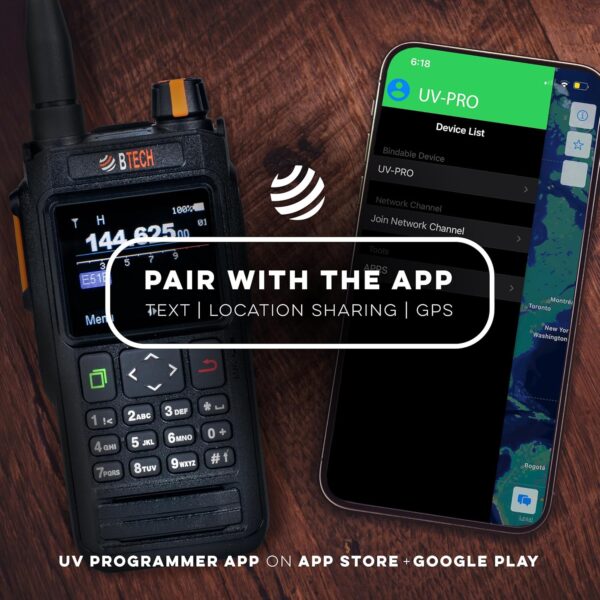

App-Connected Programming
The UV-PRO can pair with the BTECH UV app for easier channel management, setup, and group coordination. Users can live-edit or share channel plans, helping keep multiple radios aligned without manually changing every radio one by one.
Bluetooth Audio & Data
The UV-PRO supports Bluetooth HFP audio for compatible headsets and audio devices. It also supports Bluetooth data workflows, including KISS TNC workflows where enabled, making it suitable for more advanced radio-data setups.
ATAK Voice & Data Upgrade Option
For an additional cost, customers may be able to add the BTECH ATAK plug-in to support ATAK voice and data communications when used with compatible devices, software, accessories, and correct configuration.
This can allow the UV-PRO to form part of a more advanced ATAK-style situational awareness system, supporting radio-linked communication, mapping, location sharing, and field coordination.
ATAK plug-in functionality is subject to licensing, compatibility, configuration requirements, and additional software/accessory costs.
Key Features
Dual Band VHF/UHF Operation
The UV-PRO supports VHF and UHF operation for licensed amateur and authorised users, depending on programming, licensing, and Australian regulatory requirements.
Selectable Power Levels
The radio offers selectable output levels of 1W, 3W, and up to approximately 6–7W, allowing users to balance battery life, range, and operating conditions.
180 Memory Channels
The radio includes 6 channel banks with 30 channels each, giving a total of 180 memory channels for organising simplex channels, repeaters, APRS settings, event channels, travel areas, and custom radio plans.

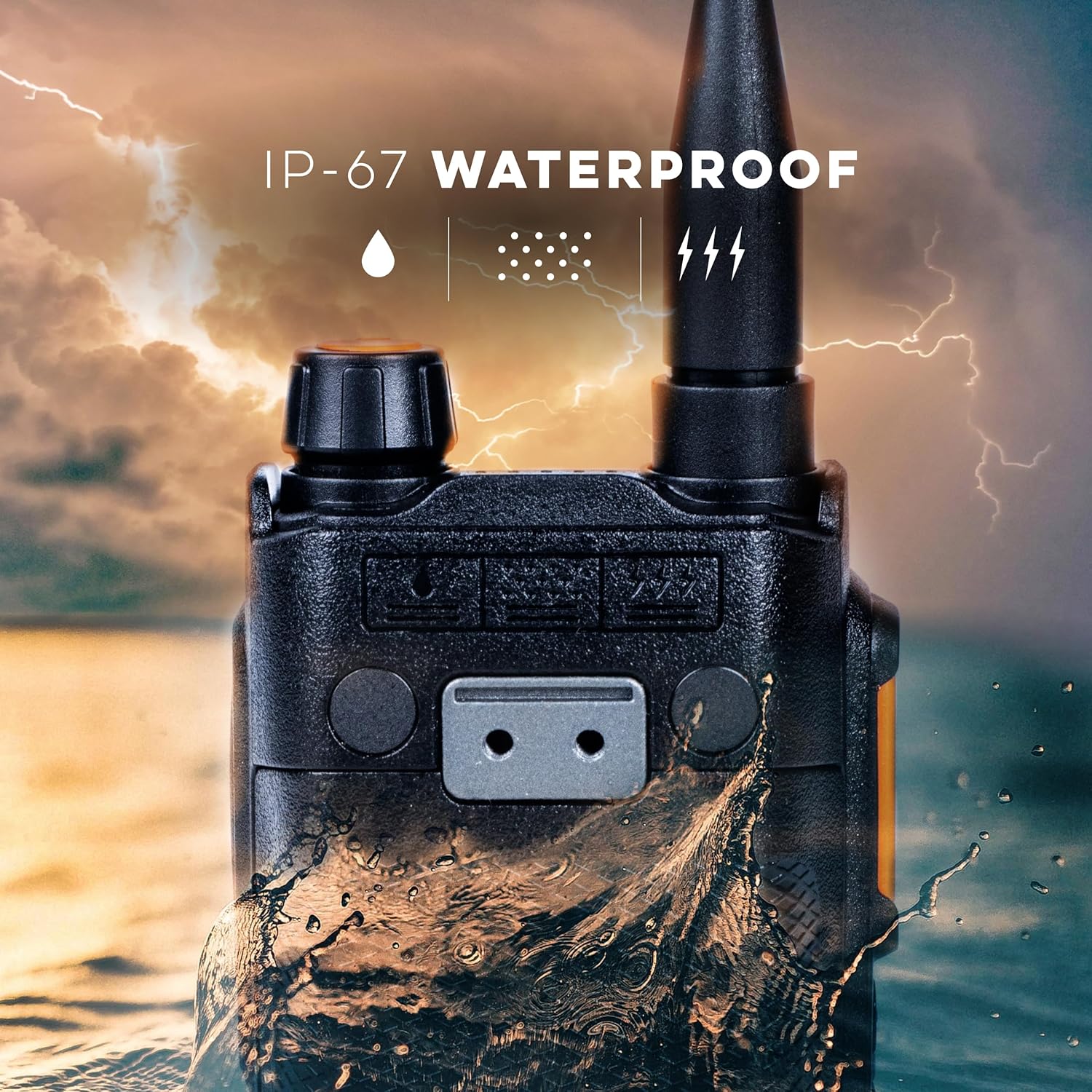

IP67 Dust & Water Protection
The UV-PRO is IP67 rated, meaning it is dust-tight and water resistant when submerged in water up to 1 meter for up to 30 minutes. This makes it suitable for wet, dusty, and rough outdoor environments.

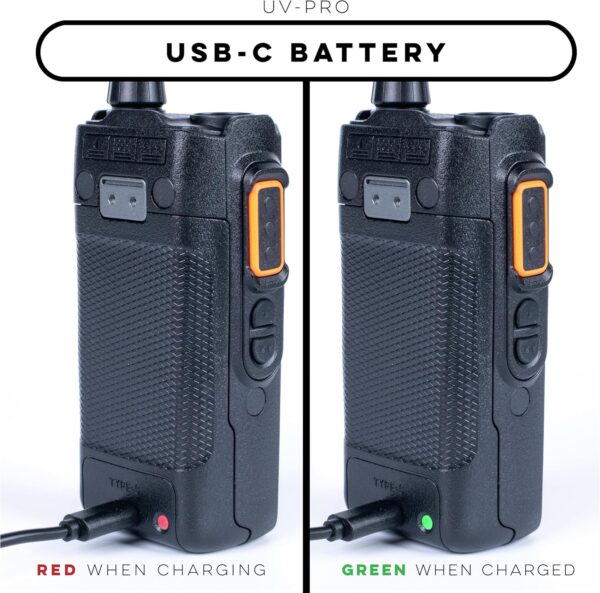

USB-C Rechargeable Battery
The included 2600mAh USB-C rechargeable battery can be charged from suitable wall chargers, vehicle USB outlets, and power banks, making it easier to keep the radio powered in the field.

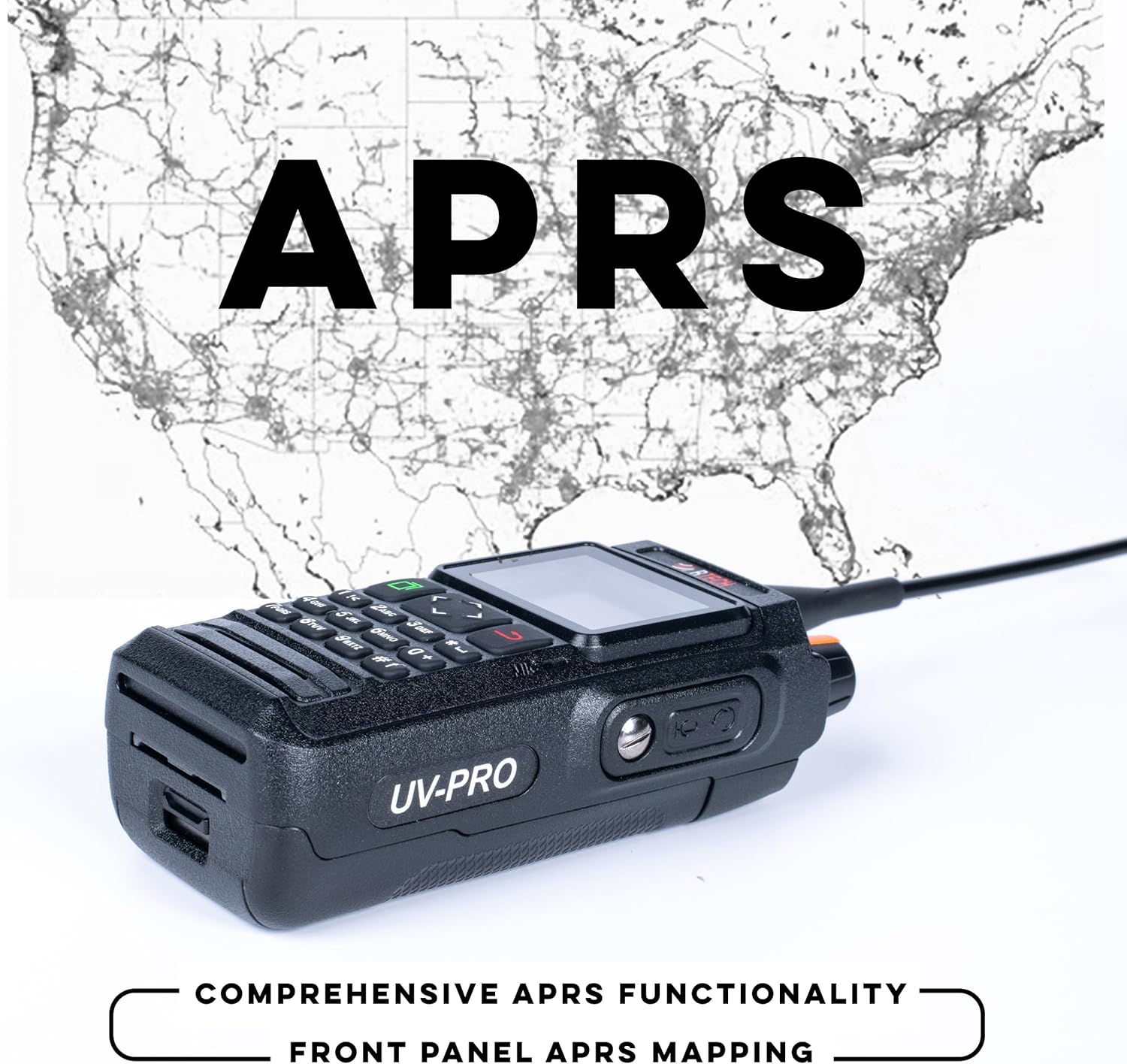

APRS & Smart Beaconing
APRS features include Mic-E, smart beaconing, ACK handling, destination APBTUV, GPWPL upload, and custom location override.

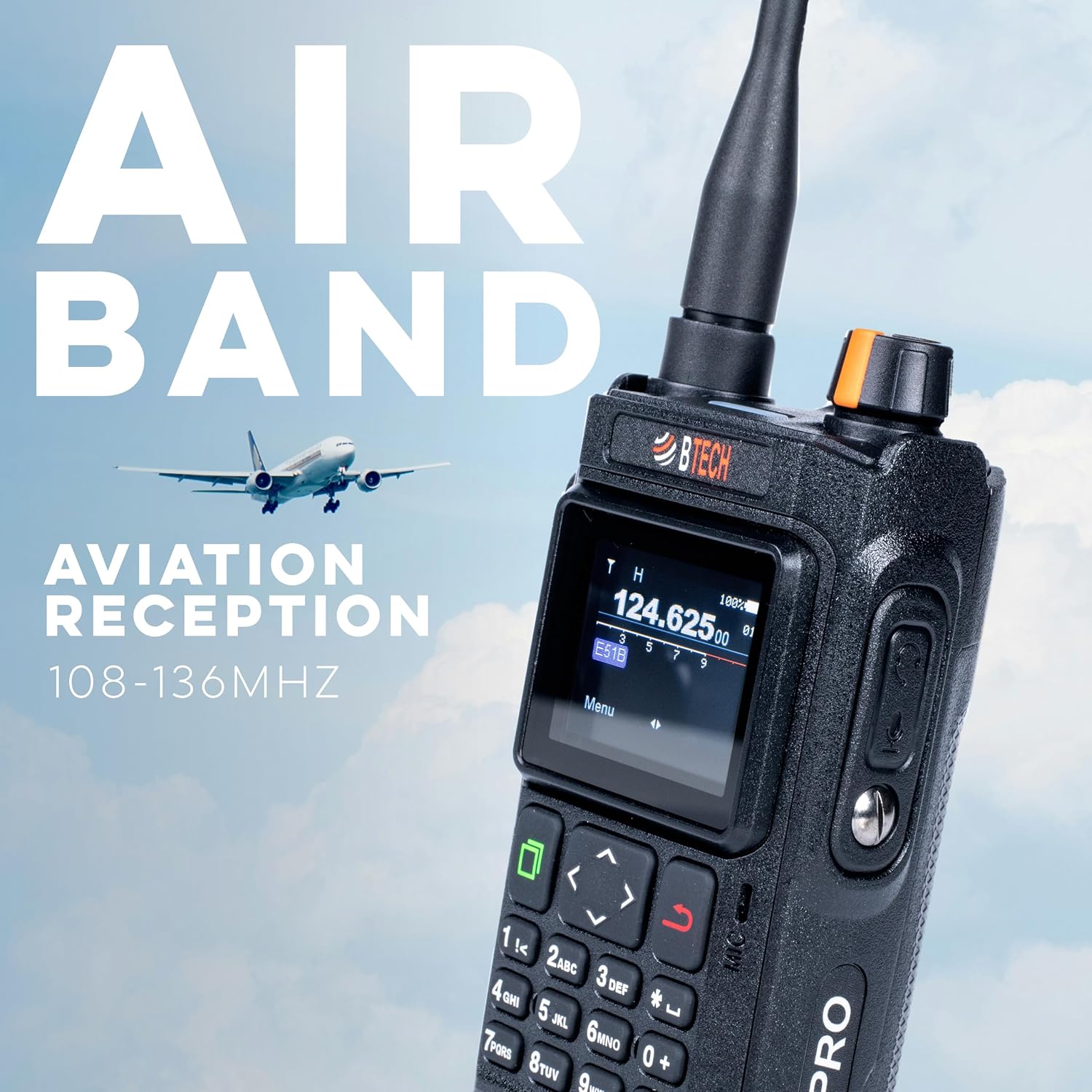

Aviation Band Receive
The UV-PRO can receive aviation band transmissions, making it useful for monitoring airband activity.

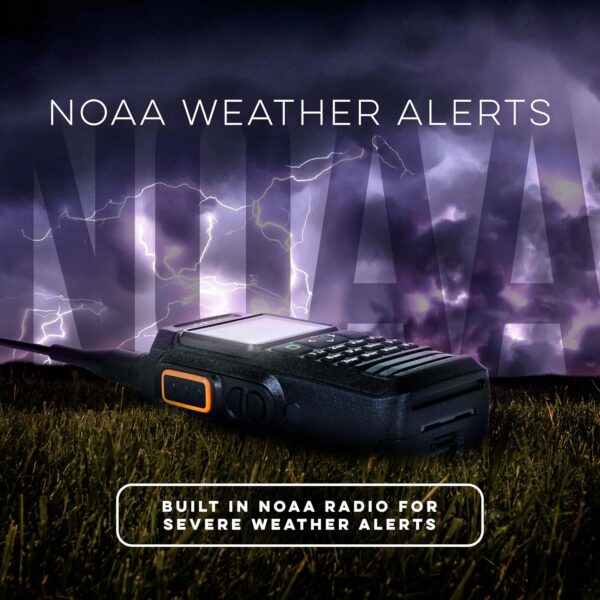

NOAA Alert Monitoring
The radio includes background NOAA alert monitoring. NOAA weather radio is a United States service, so this feature has limited practical use in Australia. Australian customers should not rely on NOAA alerts for local weather or emergency warnings.
Rapid Scanning
Frequency Sync Rapid Scanning helps identify nearby active traffic and save frequencies to VFO, making it useful for on-site monitoring and field discovery.
Specifications
| Specification |
Details |
| Model |
BTECH UV-PRO |
| Radio type |
Dual band handheld radio |
| RX / TX |
VHF & UHF amateur and authorised land-mobile bands |
| RX only |
FM broadcast and aviation band receive, background NOAA alert monitoring |
| Power levels |
1W / 3W / up to approximately 6–7W |
| Memory channels |
6 channel banks, 30 channels each — 180 total channels |
| Battery capacity |
2600mAh USB-C rechargeable |
| Charging |
USB-C, compatible with suitable power bank, vehicle USB outlet, or wall USB charger |
| Operating temperature |
Approx. -20°C to +60°C
|
| Sensitivity |
0.16uV at 12dB SINAD |
| Adjacent channel selectivity |
≥68dB |
| Audio output power |
2W |
| IP rating |
IP67 dust-tight and water resistant |
| Water resistance |
Submersible up to 1 metre for 30 minutes
|
| Bluetooth audio |
Bluetooth HFP audio/accessory support |
| Bluetooth data |
KISS TNC workflow support where enabled |
| GPS |
Built-in GPS with app syncing |
| Location tools |
Radio-to-app location sharing, APRS/BSS position sharing |
| APRS features |
Mic-E, smart beaconing, ACK handling, destination APBTUV, GPWPL upload, custom location override |
| Satellite tools |
Satellite tracking mode with pass data and on-screen details |
| Scanning |
Channel scan, VFO scan, Frequency Sync Rapid Scanning |
| Additional features |
CTCSS/DCS, DTMF live dial, Busy Channel Lockout, programmable side keys, VOX, Bluetooth VOX, dual-watch Main/Sub workflow, VFO and memory operation, app pairing, channel sharing, audio relay store/forward |
Range & Coverage Guide
Actual radio range depends on antenna quality, terrain, buildings, repeater access, radio height, weather, installation, and local interference.
| Environment |
Typical Coverage |
| Open line-of-sight handheld-to-handheld |
Approx. 1.5–8 km
|
| Best-case high-to-high handheld use |
Approx. 8–16+ km
|
| Obstructed terrain |
Approx. 400 m–3 km
|
| Inside buildings |
Approx. 150–800 m
|
| Handheld to repeater |
Typically 24–48 km
|
| High repeater sites |
Potentially 32–120+ km
|
| App/worldwide talk groups with internet |
Global where internet-connected services are used |
For best performance, use the correct antenna, keep the radio elevated where possible, and use local repeaters where available.
ATAK / Networked Radio Add-On
For customers wanting a more advanced communications system, Zero Disaster Australia can provide an optional ATAK / networked radio support package.
This may include guidance around:
- BTECH ATAK plug-in setup
- ATAK voice and data communications
- APRS and GPS position sharing
- Android device pairing
- Bluetooth data setup
- Radio-to-map workflows
- Team location awareness
- Field coordination use cases
- Practical deployment advice
This service is available at an additional cost and is subject to licensing, software availability, hardware compatibility, and the customer’s intended use case.
Suitable For
The BTECH UV-PRO ZDA Bundle is suitable for:
- Licensed amateur radio operators
- 4WD and touring users
- Preparedness-focused customers
- Rural properties and farms
- Event support teams
- Radio clubs
- Field communications users
- APRS users
- ATAK-style mapping and coordination users
- Customers wanting a compact backup communications radio
Important Australian License Notice
This radio is intended for use by licensed amateur radio operators and authorised users operating within their permitted bands and conditions.
Buyers are responsible for ensuring they hold the correct license and comply with ACMA rules, band plans, power limits, and operating conditions.
Important Compatibility Notice
APRS, KISS TNC, Bluetooth data, app syncing, ATAK, plug-in features, text messaging, and networked-radio workflows require compatible hardware, software, configuration, operator knowledge, and suitable radio conditions.
Performance and functionality may vary depending on the connected device, app version, firmware, Bluetooth setup, antenna, terrain, repeater coverage, licensing, and local operating conditions.
