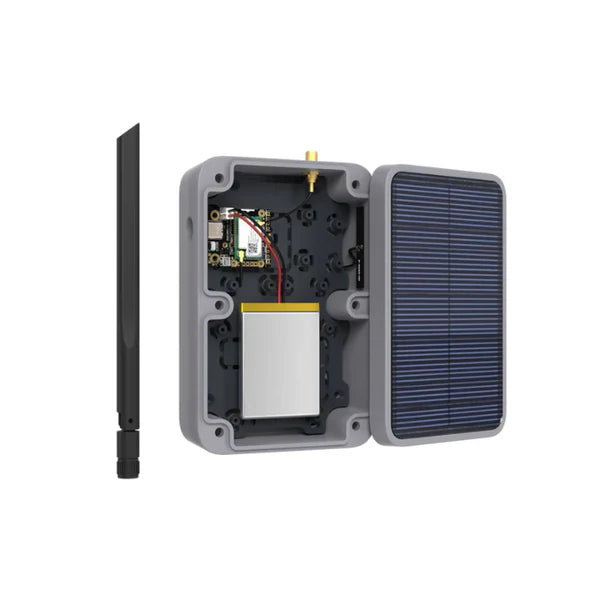

The WisMesh Repeater Mini is a pre-connected, solar-powered Meshtastic or Meshcore relay designed to expand LoRa mesh networks in remote or off-grid environments. Combining the RAK4631 LoRa module, a 3200 mAh battery, and an IP67-rated enclosure with integrated solar panel, it ensures continuous operation where traditional power sources are unavailable. Deploy it in minutes and keep your network connected—rain, dust, or shine.
It comes with an antenna, however if you wish to upgrade the antenna, note it has an RP-SMA port as opposed to SMA, so this will be relevant when searching for an antenna, converter, or coax cable.
Key Features
Pre-Flashed & Ready to Use
RAK4631 Core Module: Nordic nRF52840 MCU (32-bit ARM® Cortex-M4F, 64 MHz) with Semtech SX1262 LoRa® transceiver.
Pre-Configured Firmware: Meshtastic or Meshcore firmware pre-installed for instant deployment.
Bluetooth Low Energy (BLE) 5.0: Pair and configure via the Meshtastic or Meshcore mobile app.
Solar-Powered Durability
IP67-Rated Enclosure: ABS UL94V-0 flame-retardant casing with RP-SMA antenna connector.

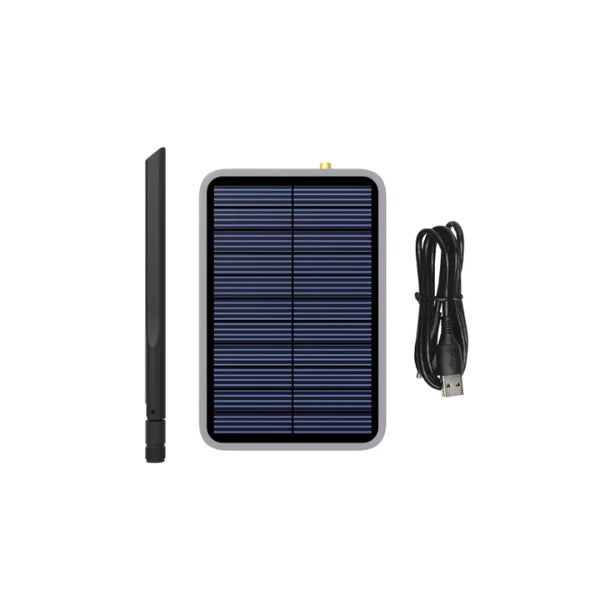

Integrated Solar Panel: Sustain off-grid operation with sunlight charging.
3200 mAh Li-Ion Battery: Long-lasting power for continuous relay functionality.
Versatile Mounting Options

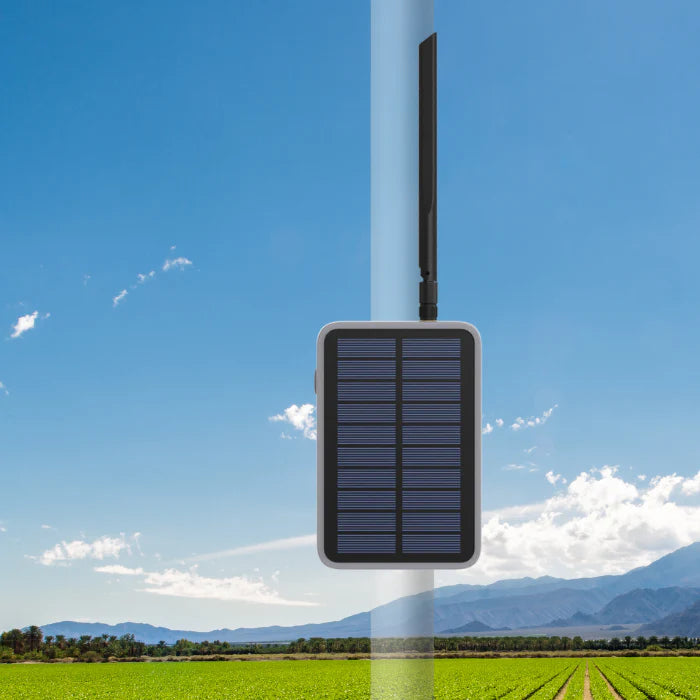

Swap able Brackets: Choose wall or pole mounts for flexible installation.
Compact Design: 150mm x 100mm x 50mm enclosure for portable or fixed setups.
High-Performance Antenna
WisMesh Blade Antenna: Omnidirectional, vertically polarized LoRa antenna, with RP-SMA connection.
-
- 9xx MHz Variant: 902–928 MHz, VSWR ≤1.5 (ideal for US, AUS).
NOTE: This Repeater can be configured to Meshtastic or Meshcore please email us your preferred software. We only can provide the AUS frequency band which is the 915Mhz range.
